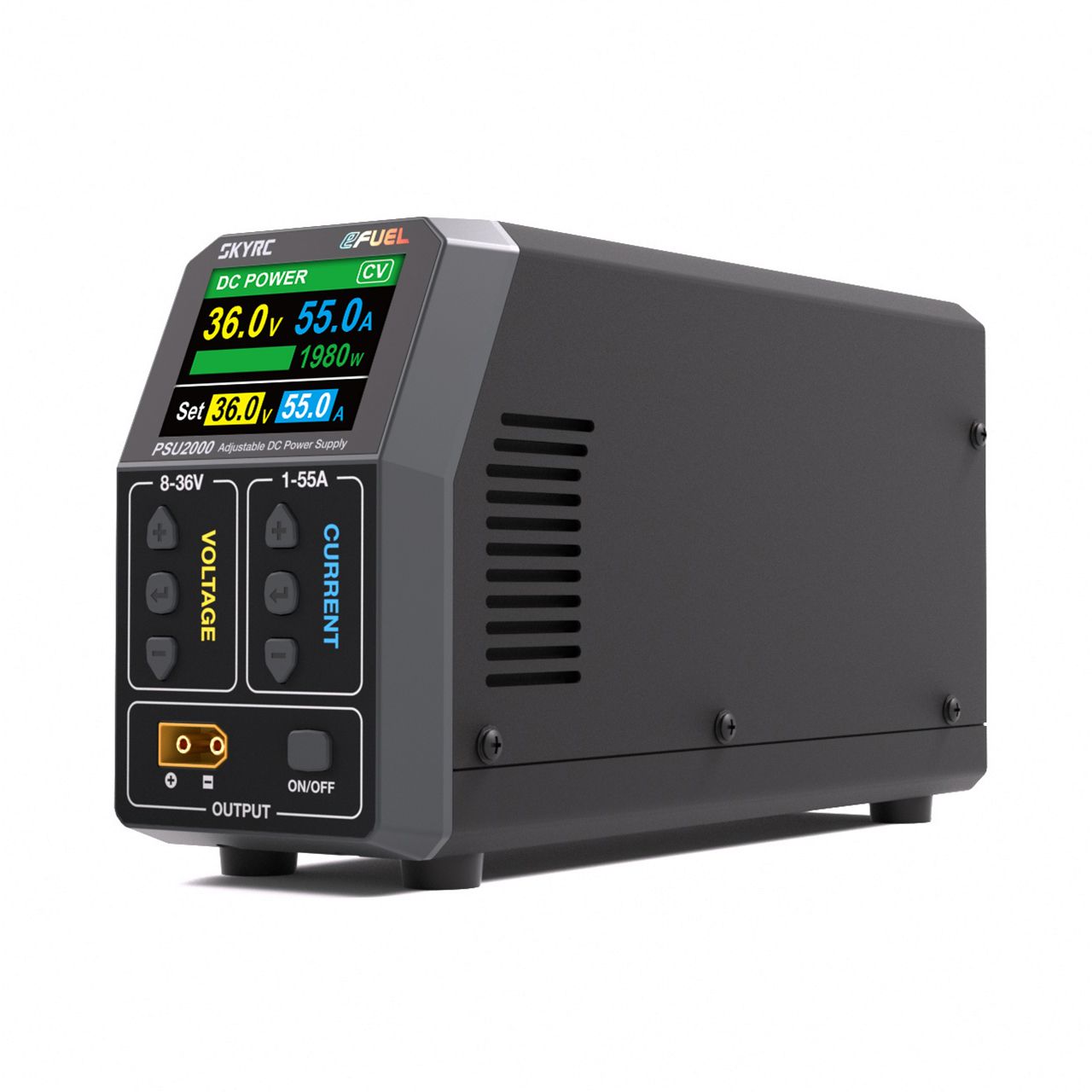

SkyRC Netzteil PSU2000 8-36 Volt 55 Ampere 1980 Watt
Productgegevens
Merk: SKYRC
Maximum mains power. Precise DC output. The SkyRC eFUEL PSU2000 is a high-performance power supply for demanding charging setups. Delivering up to 1,980W at 220V AC (or 1,200W at 110V AC), it provides clean, regulated power for high-performance DC chargersquiet and efficient!
A tilted, easy-to-read display, a robust full-metal housing, and the finely adjustable output voltage of 8û36V (up to 55A) make the PSU2000 a reliable power sourcefrom the workbench to the racetrack.
Features:
- Up to 1,980W (AC 220V) / 1,200W (AC 110V)
- Wide-range output: 8-36V DC, adjustable; up to 55A (default: 12V / 30A)
- Full-metal chassis, optimized airflow & quiet operation
- Tilted display (approx. 65°) for ergonomic handling
- Native XT90 output for RC high-current applications
- Multiple protections: overcurrent, overcharge, short circuit, over-temperature, flame-retardant design
- High efficiency > 85% and regulated, ôcleanö DC voltage
Specifications:
| Input voltage: | AC 200–240V
AC 100–120V |
| Rated DC output power: | 1,980W ±10% (at AC 220V)
1,200W ±10% (at AC 110V) |
| Output voltage: | 8.0–36.0V DC (default 12V) |
| Output current: | 1.0–55.0A (default 30A) |
| Dimensions / weight: | 289 × 90 × 158 mm / approx. 2.9 kg |
| Operating environment: | Temperature: 0–40 °C, humidity: 5–75%
Storage: −10–70 °C, 5–75% r.h. |
| Connector: | XT90 output |
SK200029-02
